3003 Aluminum Strip Coil

Current Position :HOME/Alloy Brazing/3003 Aluminum Strip Coil/

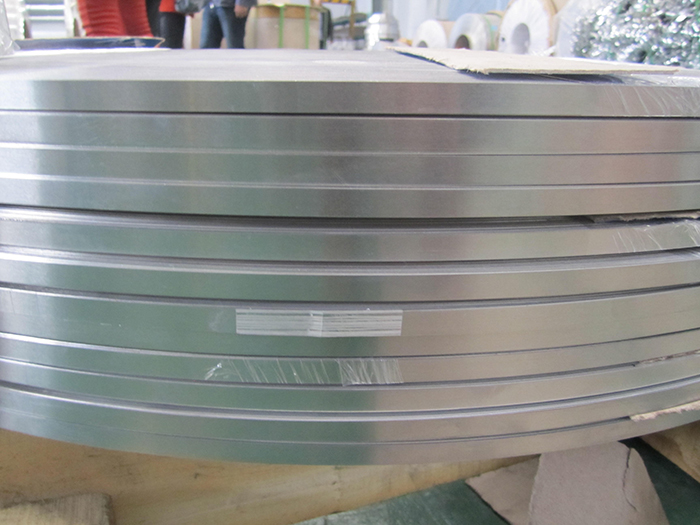

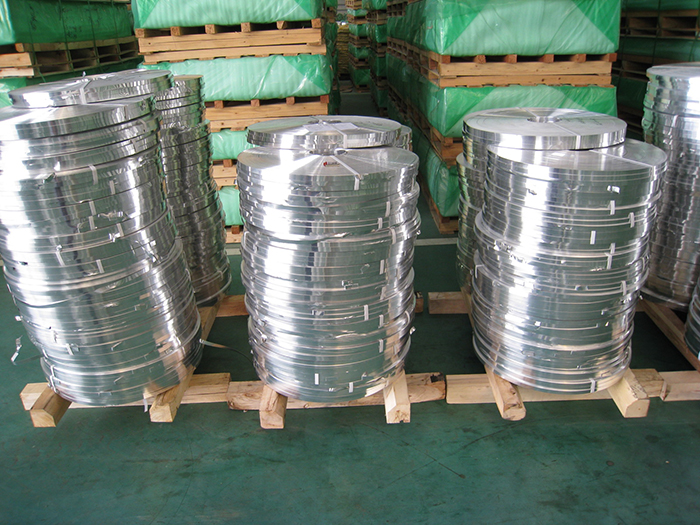

3003 Aluminum strip coil for heating element

Author : frank      Source :Original
Summary :3003 Aluminum strip coil for heating element *Excellent collapse resistance and strength after brazing *Good mechanical property and surface condition *Various specifications for soldering sheet Performanceindexofheatingelementfinmate

3003 Aluminum strip coil for heating element

*Excellent collapse resistance and strength after brazing

*Good mechanical property and surface condition

*Various specifications for soldering sheet



Performance index of heating element fin material
Alloy

Temper

Thickness
(mm)


Tolerance
(mm)


Clad rate(%)

Mechanical property
Tensile Strength
(MPa)


Yield
Strength
(MPa)


Elongation
Min.(%)
3003 O 0.2~0.30 ±0.01 None 100~150 ≥45 15
3003 H16 0.5~0.70 ±0.02 None 150~210 ≥120 1
4047 H18 0.05~0.1 ±0.005 None ≥200 ≥170 0.5
4A13 H18 0.05~0.1 ±0.005 None ≥190 ≥16 0.5
4104 H18 0.05~0.1 ±0.005 None ≥220 ≥190 0.5
*Alloy、specification and mechanical property can be customized according to different requirement.
