4104/3003/4104 aluminum sheet

Author:Frank Time:2023-05-17



*Perfect surface condition and tolerance control

*Good consistency for any fin mill

*Excellent collapse resistance and strength after brazing

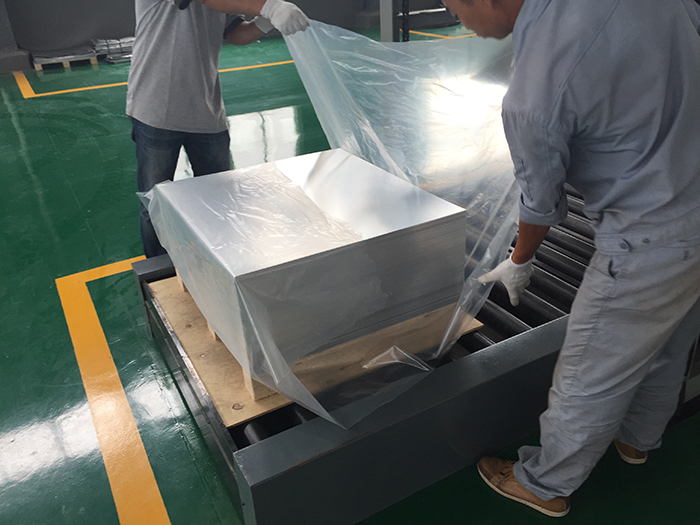

4104/3003/4104 cladding sheet


Performance index of engineering machinery fin material
Alloy

Temper

Thickness
(mm)


Tolerance
(mm)


Clad rate(%)

Mechanical property
Tensile Strength
(MPa)
Yield
Strength
(MPa)
Elongation
Min.(%)


3003
(inner fin)
O 0.2~0.3 ±0.007 None 100~150 ≥45 15
3003
(inner fin)
H12 0.2~0.3 ±0.007 None 120~160 ≥85 2
3003
(external fin)
H14 0.1~0.15 ±0.005 None 150~200 ≥120 1
Performance index of engineering machinery board material
Alloy

Temper

Thickness
(mm)


Tolerance
(mm)


Clad rate(%)

Mechanical property

Tensile Strength
(MPa)


Yield
Strength
(MPa)


Elongation
Min.(%)


4104/3003/4104 H14 0.6~0.8
1.2~8.3
±0.02
±0.03
13~17
8~12
150~200 ≥120 3
4104/SA-5/4104 H14 0.6~0.8
1.2~8.3
±0.02
±0.03
13~17
8~12
160~210 ≥130 3
4104/SA-7/4104 H14 0.6~0.8
1.2~8.3
±0.02
±0.03
13~17
8~12
170~220 ≥140 3

*4104 can be replaced by 4343/4047/4343/4004etc, according to customer’s requirement.

*Alloy、specification and mechanical property can be customized according to different requirement.
