Aluminum Strip Coil for Tubes

Current Position :HOME/Brazing Sheet/Aluminum Strip Coil for Tubes

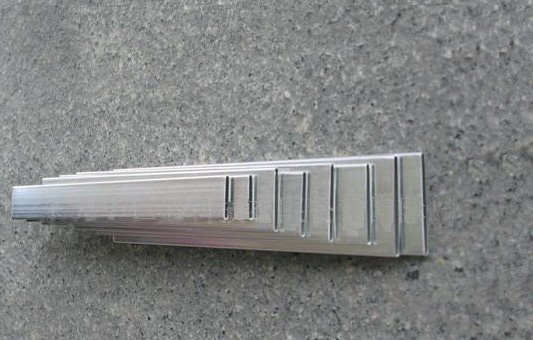

Aluminum strip coil for tubes

*Various specifications for B-TUBES、ratio-frequency welded tubes and other tubes

*Good surface condition and slitting precision

*Excellent collapse resistance during brazing

*Perfect corrosion resistance and long life



B-tube and ratio-frequency welded tube
Alloy

Temper

Thickness
(mm)


Tolerance
(mm)


Clad rate(%)

Mechanical property

Tensile Strength
(MPa)


Yield
Strength
(MPa)


Elongation
Min.(%)


4343/SA-5/7072 H24 0.25~0.3 ±0.008 8~12 160~210 ≥120 5
4343/SA-7/7072 H24 0.25~0.3 ±0.008 8~12 170~220 ≥120 5
Glass mounting bracket material
Alloy

Temper

Thickness
(mm)


Tolerance
(mm)


Clad rate(%)

Mechanical property

Tensile Strength
(MPa)


Yield
Strength
(MPa)


Elongation
Min.(%)


3003 H26 0.3~35 ±0.015 None 190~220 ≥160 8
*4343 can be replaced by 4045/4047 etc, according to customer’s requirement.

*Slitting tolerance can be controlled in ±0.02mm
*Alloy、specification and mechanical property can be customized according to different requirement.
